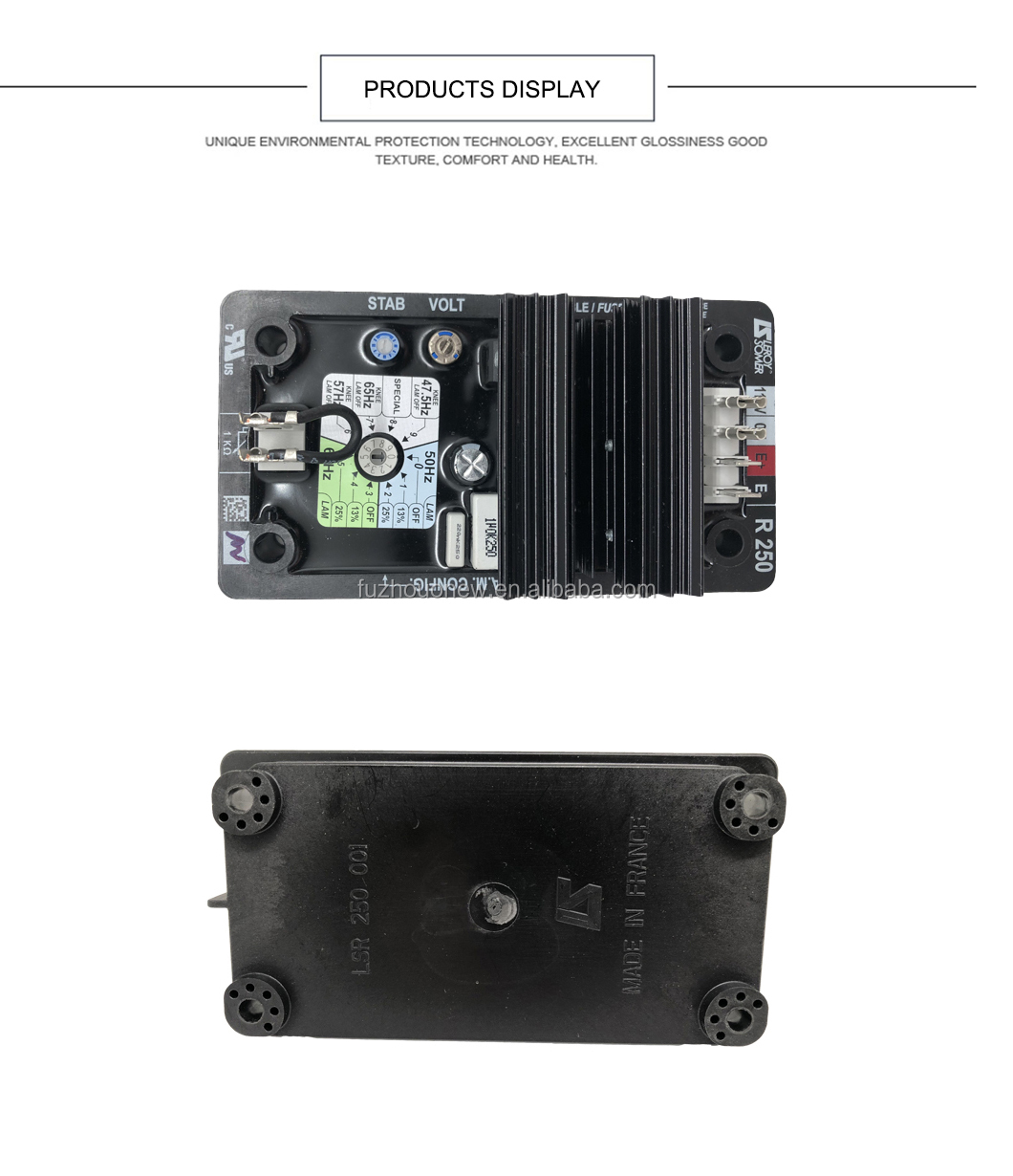

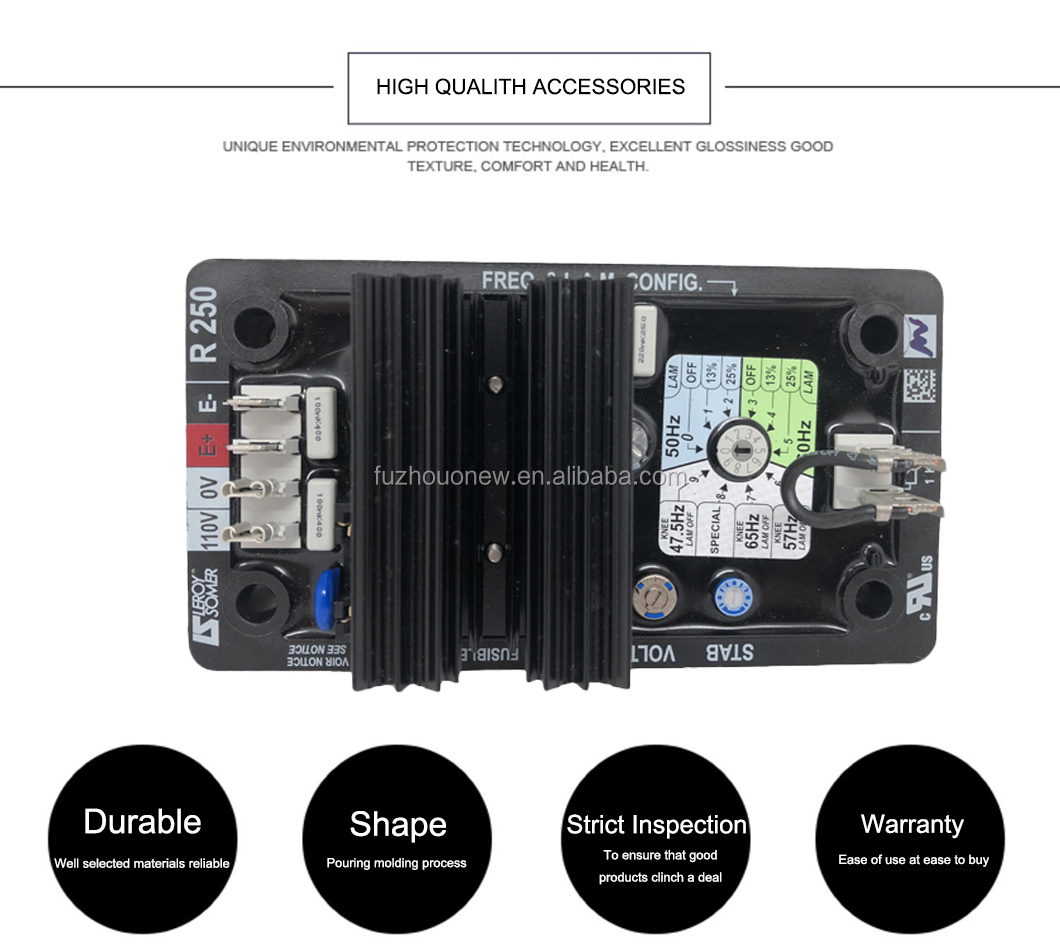

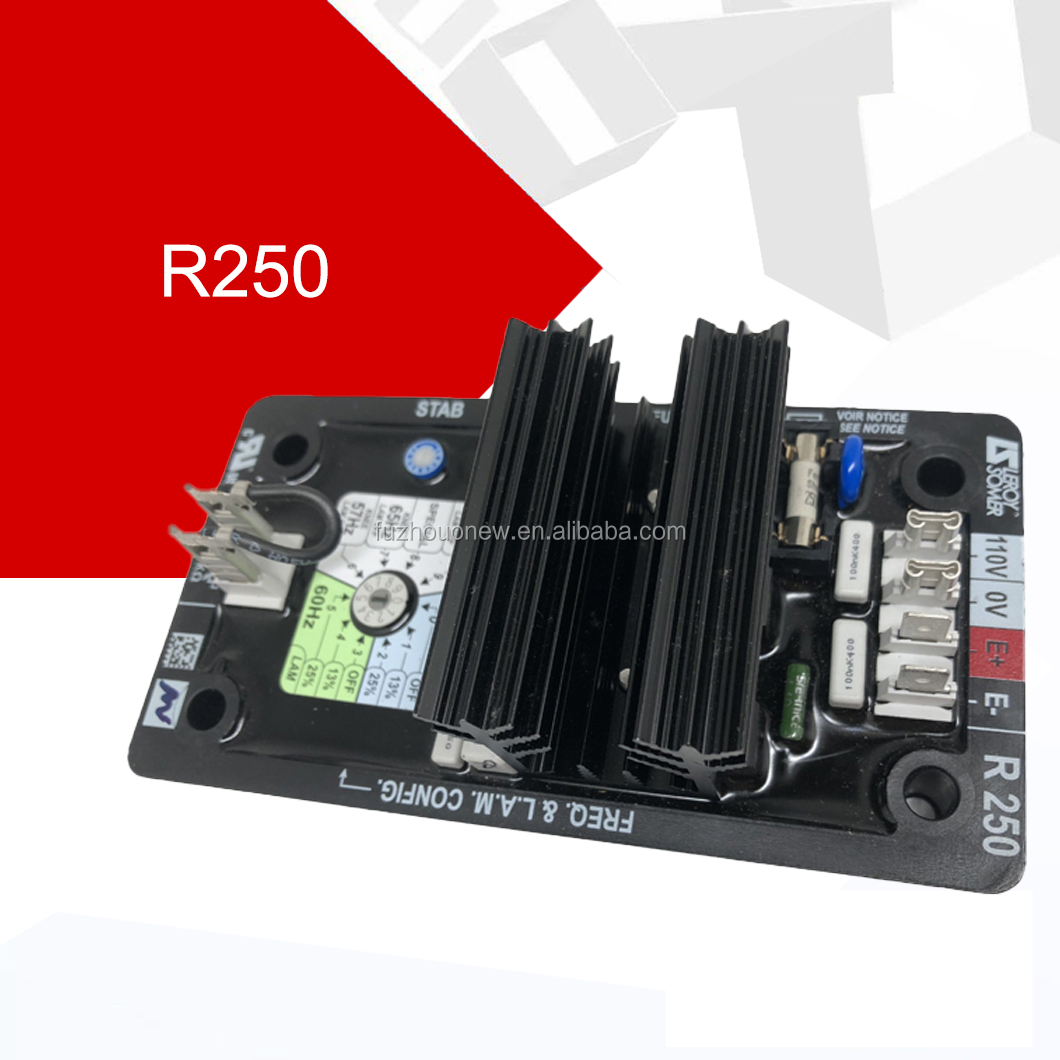

leroy-somer R250 AVR for Generator Alternator
R250
minimum order
1 carton
Quantity
$25.00 - $32.00 / carton
leroy-somer R250 AVR for Generator Alternator
- Model Number:r250 avr
- Type:AVR
- generator type:diesel generator, gasoline generator
- Package Size:16*9*6CM
- Weight:0.3kg
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max 90VDC at 207VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Appearance:neutral
- Quality Class:High Quatity
Product description
automatic voltage regulator for diesel generator replaced avr r250 is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator.In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
PRODUCT SPECIFICATIONS
Product Name | AVR R250 for diesel generator | ||||
Sensing/Power input | Voltage | 120 (90-140VAC) | |||
1 phase,2 wires, with copper jumper options | |||||
Output | Current | Continuous 8A Intermittent 10A within 10 seconds | |||
Voltage | Max 100VDC at 207VAC input | ||||
Voltage Regulation | <±1% RMS with 4% engine governing | ||||
