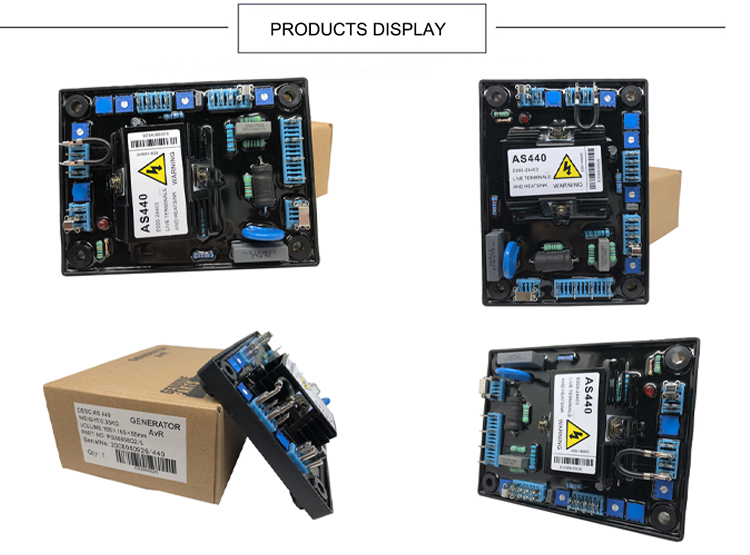

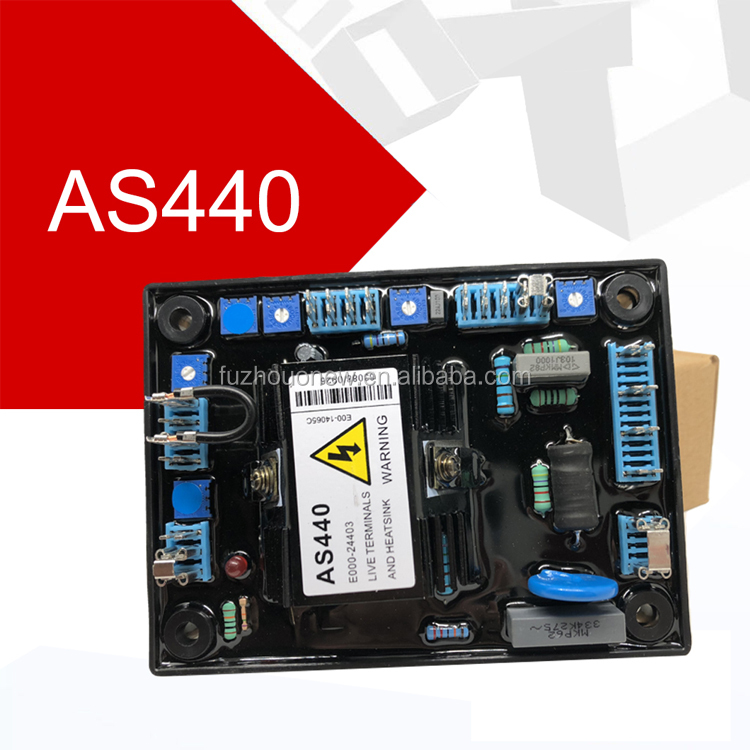

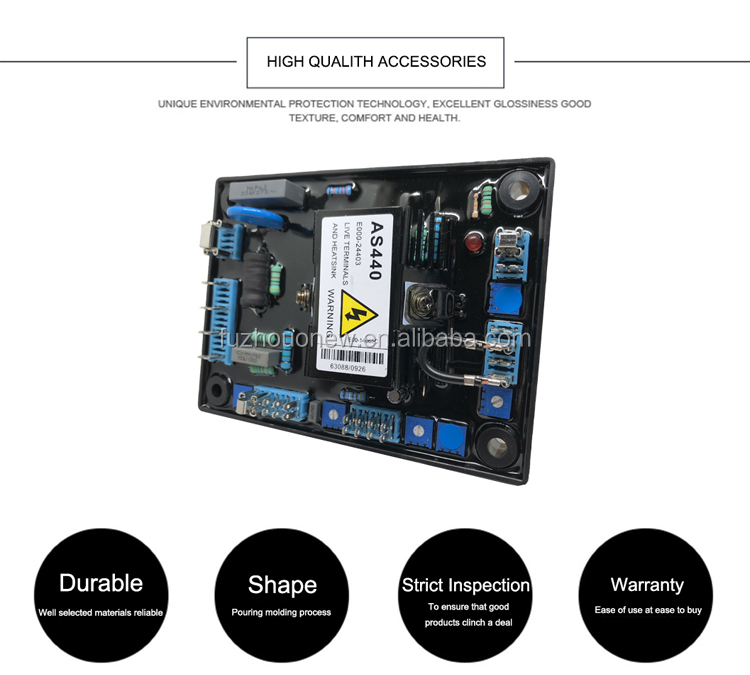

Spare Parts as440 avr circuit diagram for 150kva Stamford alternator avr
as440
minimum order
1 carton
Quantity
$12.00 - $18.00 / carton
Spare Parts as440 avr circuit diagram for 150kva Stamford alternator avr
- Model Number:as440
- Certificate:CE/ISO9001
- package:carton packing
- MOQ:1
- AC Single/Three Phase:Can be supplied
- Alternator:Stamford / Leory Somer / China, etc
- Type:Automatic Voltage Regulator AVR R250 for Diesel Generator
- Rated Voltage:110V / 240V, 220V / 380V, 230V / 400V, 240V / 415V
- Gross/Net Weight:0.35kg
- Keyword:generat parts as440
Product Overview
High Quality Generator AVR SX440 SX460 AS440 Alternator Automatic Voltage Regulator
Generator Universal AVR SX400 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
Generator Universal AVR SX400 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
PRODUCT SPECIFICATIONS
Specification Parameter for AVR as440 | ||
Input | ||
Voltage Jumper selectable | 95-132V ac or 190-264V ac | |
Frequency | 50~60Hz nominal Phase 1 | |
Output | ||
Voltage | Max 90V DC at 207V AC input | |
Current continuous | 4 A DC | |
Intermittent | 6 A for 10 secs | |
Resistance | 15 ohms minimum | |
Regulation | +/- 1.0%(with 4% engine governing) | |
Environment | ||
Vibration | 20-100 Hz 50mm/sec 100Hz-2kHz 3.3g | |
Operating Temperature | -40°C to + 70°C | |
Storage Temperature | -55°C + 80°C | |
Relative Humidity | 0-70°C 95%(Non condensing) | |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
