Replace Dse 701as 701-as 701K-as Deep Sea Generator Controller Panel Module Dse701as
701-AS
minimum order
1 carton
Quantity
$15.00 - $25.00 / carton
- Application:diesel generator
- Place of Origin:Fujian, China
- Brand Name:guangling
- Model Number:701-AS
- Type:Control Panel
- generator type:diesel generator
- Product Name:Generator Controller
- Packing:Carton
- Color:Black
- Quality Class:High Quatity
- Stock:DSE702 in stock
- Usage:Distant Control,Multi-Protection, LED data display
- Function:Intelligent Automatic Generator controller
- Specification::6.5*6.5*6.5cm
- Certification:CE ISO
Replace Dse 701as 701-as 701K-as Deep Sea Generator Controller panel module Dse701as
Description
DSE701 | ||
Auto Mains Failure Control Module | ||
Overall Size | 72 mm x 72mm x37.8mm | |
(2.8″ x 2.8″ x 1.5″) | ||
Panel Cutout Size | 68 mm x 68 mm | |
(2.7″ x 2.7″) | ||
Tightening Torque | 0.8Nm(7lb-in) | |
Packed Size | 105mm*82mm*61mm | |
Weight | 0.3kg | |

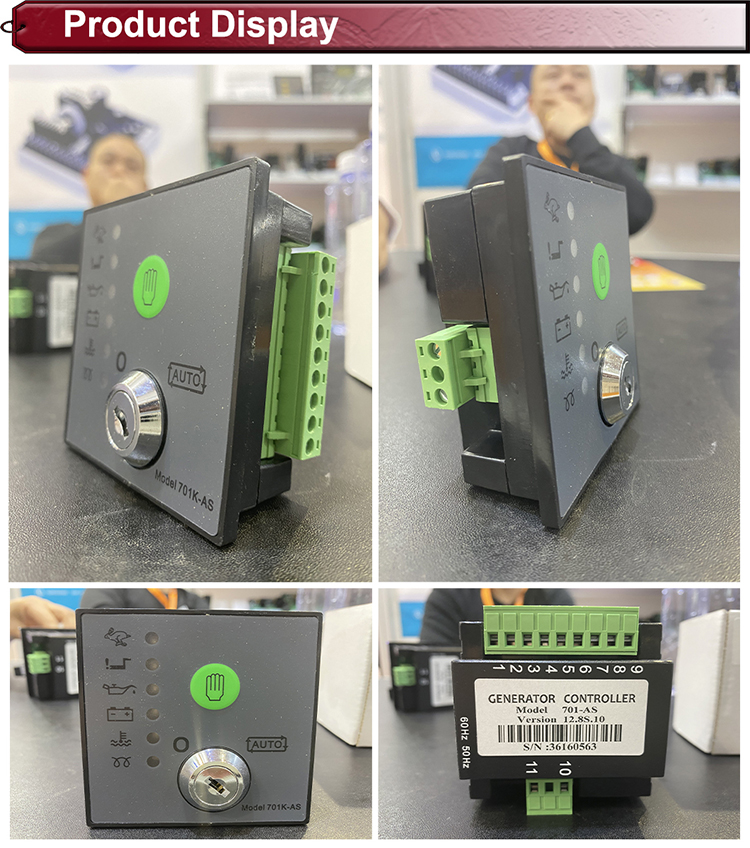

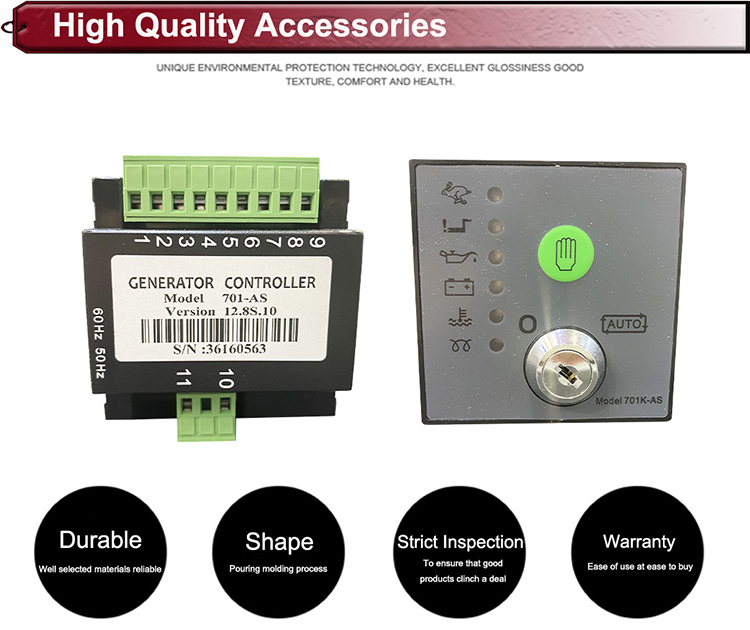

701 Controller
The modle 701 is an engine control module designed to control the engine via a key swith and pushbuttons on the
front panel.The module is used to start the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation.
front panel.The module is used to start the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation.
Reliable and extremely performance.
Each control has been tested, and the each buttons undergoes fifty thousand test. Same quality as the original.Ensure that each product is used by customers assured.
Main function
Emergency parking control
Start motor automatic detection
Preheating
Emergency parking control
Start motor automatic detection
Preheating
DC SUPPLY | CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous |
MAXIMUM OPERATING CURRENT | 340 mA at 12 V, 160 mA at 24 V | |
MAXIMUM STANDBY CURRENT | 160 mA at 12 V, 80 mA at 24 V | |
CHARGE FAIL/EXCITATION RANGE | 0 V to 35 V | |
MAINS (UTILITY) | VOLTAGE RANGE | 15 V to 415 V AC (Ph to N) |
26 V to 719 V AC (Ph to Ph) | ||
FREQUENCY RANGE | 3.5 Hz to 75 Hz | |
OUTPUTS | OUTPUT A (FUEL) | 15 A DC at supply voltage |
OUTPUT B (START) | 15 A DC at supply voltage | |
OUTPUTS C & D | 8 A 250 V (Volt free) | |
AUXILIARY OUTPUTS E,F,G,H | 2 A DC at supply voltage | |
GENERATOR | VOLTAGE RANGE | 15 V to 415 V AC (Ph to N) |
26 V to 719 V AC (Ph to Ph) | ||
FREQUENCY RANGE | 3.5 Hz to 75 Hz | |
MAGNETIC PICK-UP | VOLTAGE RANGE | +/- 0.5 V to 70 V |
FREQUENCY RANGE | 10,000 Hz (max) |

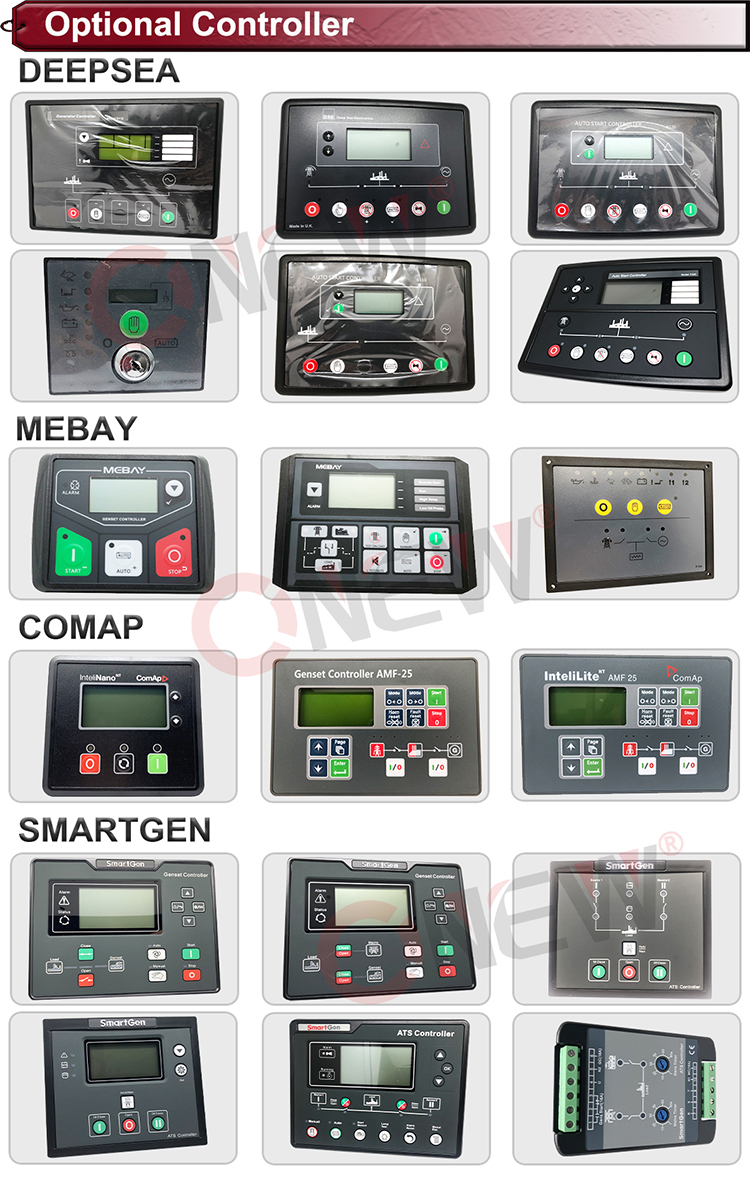

How to choose a suitable Generator Controller | ||||||||||||
Cheap(for low cost small power generators) | ||||||||||||
DSE3110 | DSE4520 | DSE4620 | DSE501K | DSE701 | DSE702 | DSE704 | ||||||
More Functions(for high power generator) | ||||||||||||
DSE5110 | DSE5220 | DSE6020 | DSE6120 | DSE7210 | DSE7310 | DSE7320 | ||||||
More languages | ||||||||||||
Avaliable languages:Englines,Spanish,Portuguese,French,German,Russian,Thai,Arabic,Chinese etc | ||||||||||||
DSE6120 | DSE7210 | DSE7220 | DSE7310 | DSE7320 | ||||||||
AMT Generator Controller(Auto Mains Fsilure Generator control Modules) | ||||||||||||
DSE704 | DSE720 | DSE5220 | DSE6120 | DSE7220 | DSE7320 | |||||||
Synchronising and Load Share DSE Controller | ||||||||||||
DSE8610 | DSE8620 | DSE8660 | ||||||||||
Canbus ECU Communications Generator Controller | ||||||||||||
DSE3110 | DSE4520 | DSE7210 | DSE7220 | DSE7310 | DSE7320 | |||||||
parameter
Controll Funtion | Protection Funtion | Data display |
Emergency Stop | Low-Lub oil pressure | Speed |
Manual Start/stop | Charge Failure | Voltage of battery |
Distance Start/Stop | Emergency STOP | Lub oil pressure |
Preheat Control | High speed start/shop failure | Operation time |
Stop/idle control | High Speed/Start and stop failure | Voltage/Current |
