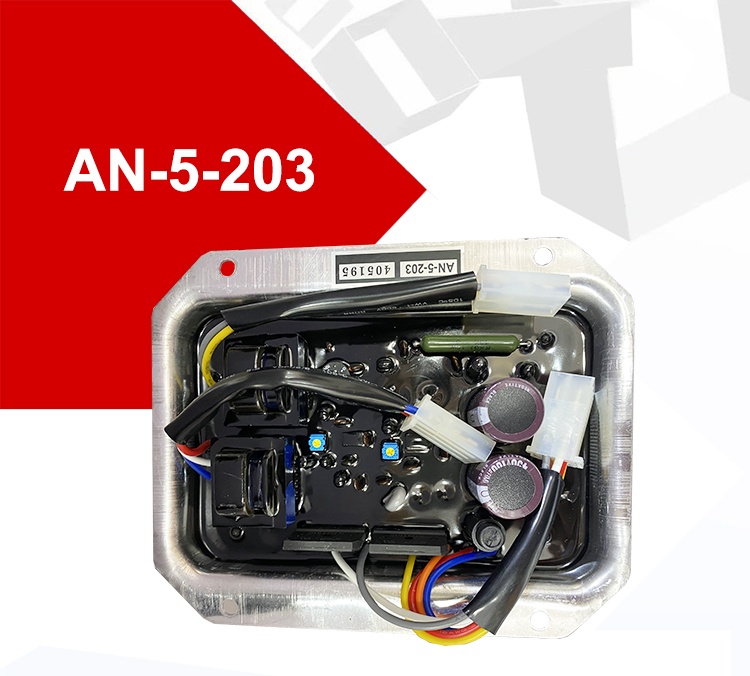

Load Electrical Circuit AVR Generator Replaced AVR An-5-203 for Denyo Generator
an-5-203
minimum order
1 carton
Quantity
$190.00 - $280.00 / carton

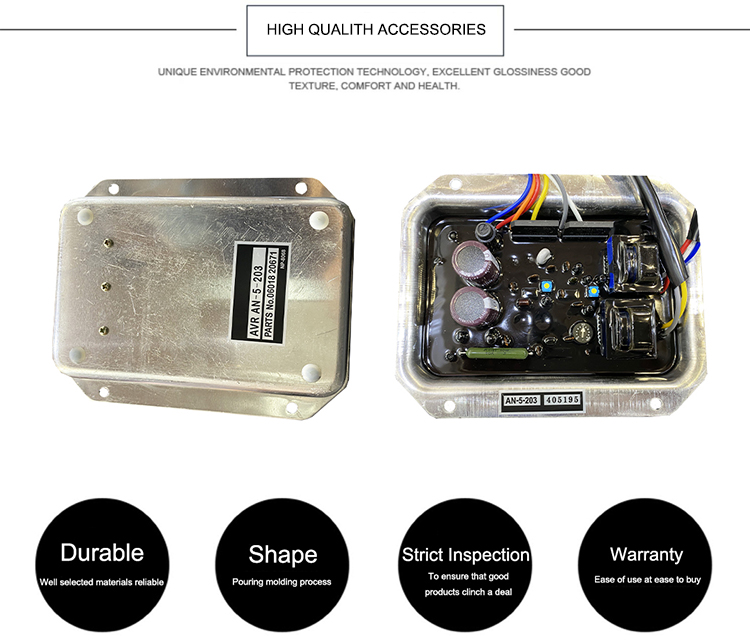

Load Electrical Circuit AVR Generator Replaced AVR An-5-203 for Denyo Generator
- Model Number:an-5-203
- rated current:6A
- Type:diesel engine part
- generator type:diesel generator, gasoline generator
- Package Size:12*8.5*5.5cm
- Weight:0.35kgs
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- KEYWORDS:an-5-203
- Warranty:1Year
PRODUCT SPECIFICATIONS
Compatible Single Phase Automatic Voltage Regulator AVR an-5-203 For Diesel Generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
China Manufacturer Supply Generator AVR AN-5-203 | ||||||
Sensing Input voltage | 55-200V AC | |||||
Frequency | 50/60HZ | |||||
Output voltage | Max 120V /5 A dc/10s. | |||||
Voltage input | 400Vac,50Hz/60Hz | |||||
UFRO | Slop 17% down to 30Hz | |||||
Volts regulation range | ≥ 15% | |||||
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
