industrial alternators provides excitation AVR R150 excellent reliability AVR
R150
minimum order
1 carton
Quantity
$25.00 - $50.00 / carton
industrial alternators provides excitation AVR R150 excellent reliability AVR
- Brand Name:guangling
- Model Number:avr r150
- Certificate:CE/ISO9001
- package:carton packing
- MOQ:1
- AC Single/Three Phase:Can be supplied
- Alternator:Stamford / Leory Somer / China, etc
- Type:Automatic Voltage Regulator AVR R250 for Diesel Generator
- Rated Voltage:110V / 240V, 220V / 380V, 230V / 400V, 240V / 415V
- Gross/Net Weight:0.35kg
- Keyword:avr r150
Product Overview

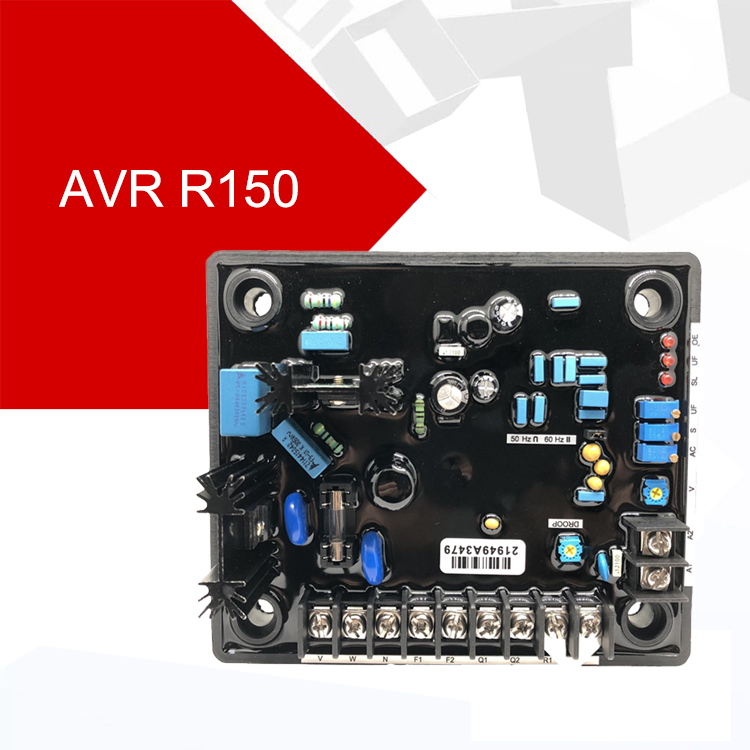

Generator Universal AVR R150 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
We have Replacement for Leroy Somer AVR R150 in our regulator stock!
Replacement Models: R120, R150, R220, R230, R250, R438, R448, R449, R450, R726, R731
Original Modules: D510C, R120, R129, R250, R438, R449, R450, R450M, R450T, R630, R726, R731
The Brands / Part No. here are for reference purpose only, our products are replacement / not original.
Replace Leroy Somer R150 Voltage Regulator AVR
DESCRIPTION:
The Leroy Somer R150 AVR is an original product manufactured exclusively by Leroy Somer in France.
The R150 AVR is used on the following Leroy Somer Alternators:
· TAL046 A, TAL046 B, TAL046 C, TAL046 D, TAL046 E, TAL046 F, TAL046 G, TAL046 H, TAL046 J
· TAL047 A, TAL047 B, TAL047 C, TAL047 D, TAL047 E, TAL047 F
· TAL049 B, TAL049 C, TAL049 D, TAL049 E
SAME EXACT AVR AS:
· Leroy Somer Voltage Regulator 5014127
· Leroy Somer Voltage Regulator 40022682
If you have any questions please contact us we will be happy to serve for you.
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
Replacement Models: R120, R150, R220, R230, R250, R438, R448, R449, R450, R726, R731
Original Modules: D510C, R120, R129, R250, R438, R449, R450, R450M, R450T, R630, R726, R731
The Brands / Part No. here are for reference purpose only, our products are replacement / not original.
Replace Leroy Somer R150 Voltage Regulator AVR
DESCRIPTION:
The Leroy Somer R150 AVR is an original product manufactured exclusively by Leroy Somer in France.
The R150 AVR is used on the following Leroy Somer Alternators:
· TAL046 A, TAL046 B, TAL046 C, TAL046 D, TAL046 E, TAL046 F, TAL046 G, TAL046 H, TAL046 J
· TAL047 A, TAL047 B, TAL047 C, TAL047 D, TAL047 E, TAL047 F
· TAL049 B, TAL049 C, TAL049 D, TAL049 E
SAME EXACT AVR AS:
· Leroy Somer Voltage Regulator 5014127
· Leroy Somer Voltage Regulator 40022682
If you have any questions please contact us we will be happy to serve for you.
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
PRODUCT SPECIFICATIONS
Product Name | Automatic Voltage Regulator AVR R150 for Generators |
Model | R150 |
SENSING/POWER INPUT Voltage | 240 VAC ± 10% for 1-phase, 380 V to 480 VAC ± 10% for 3-phase, 2-line sensing |
MAGNETIC FIELD OUTPUT Voltage | 105 VDC at 240 VAC input |
MAGNETIC FIELD OUTPUT Current | 6 A DC • 8 A for 30 sec. (when allowed by the field resistance) |
Voltage setting | min ± 10% of rated voltage. |
Input power | Voltage: 415 V for 3-phase and 240 V for 1-phase |
Frequency: 50/60 Hz | |
Output power | Voltage: 105 VDC at 240 VAC input |
Current:6 A DC | |
8 A for 30 sec. (when allowed by the field resistance) | |
Operating temperature | -20ºC to +70ºC |
Storage temperature | -40ºC to +80ºC |
