Hot Sale HAT700BI ATS Controller Intelligent Dual-supply Module with Configurable Function
HAT700BI
minimum order
1 carton
Quantity
$266.00 - $399.00 / carton
- Application:engine parts
- Place of Origin:Fujian, China
- Brand Name:NO, Smartgen
- Model Number:HAT700BI
- Type:Control Panel, HAT700BI
- generator type:diesel generator, gasoline generator
- Product Name:HAT700BI ATS controller
- Package Size:197*152*47(mm)
- Packing:Carton
- Weight:0.8KG
- Color:Black
- Usage:Smartgen ATS controller HAT700BI
- Function:HAT700BI smartgen controller
- Warranty:1 Year
Description

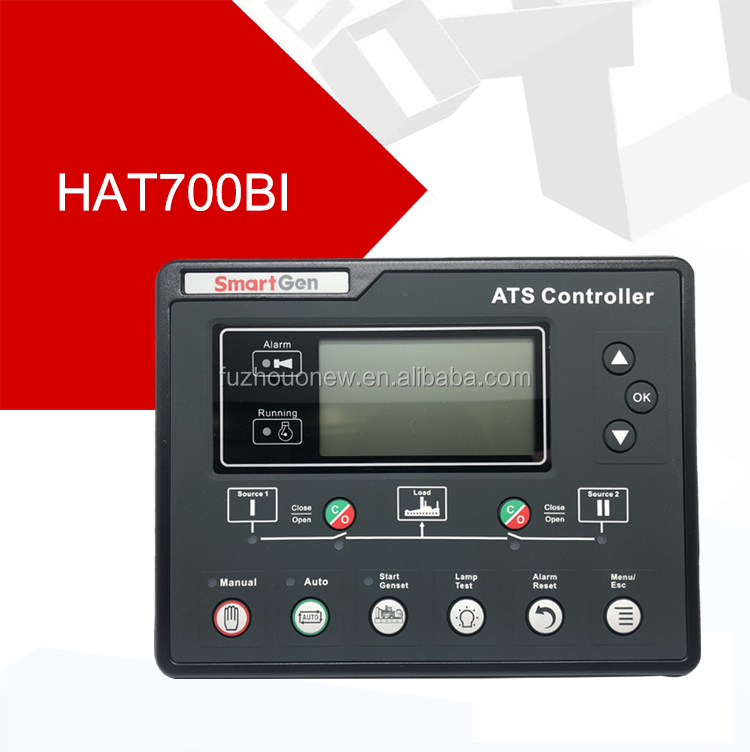

HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
parameter
Function Item | Parameter |
Display | LCD(132*64) |
AC System | 1P2W/2P3W/3P3W/3P4W |
Alternator Voltage | (50-280)V(ph-N) |
Alternator Frequency | 50/60HZ |
DC Supply | DC(8-35)V |
Case Dimensions(mm) | 197*152*47 |
Panel Cutout(mm) | 186*141 |
Operating Temp. | (-25~+70)℃ |
Applicable Switch Type | PC Two-stage，PC Three-stage，CB and CC switch |
Monitor Interface | RS485 |
Programmable Interface | LINK/RS485 |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
