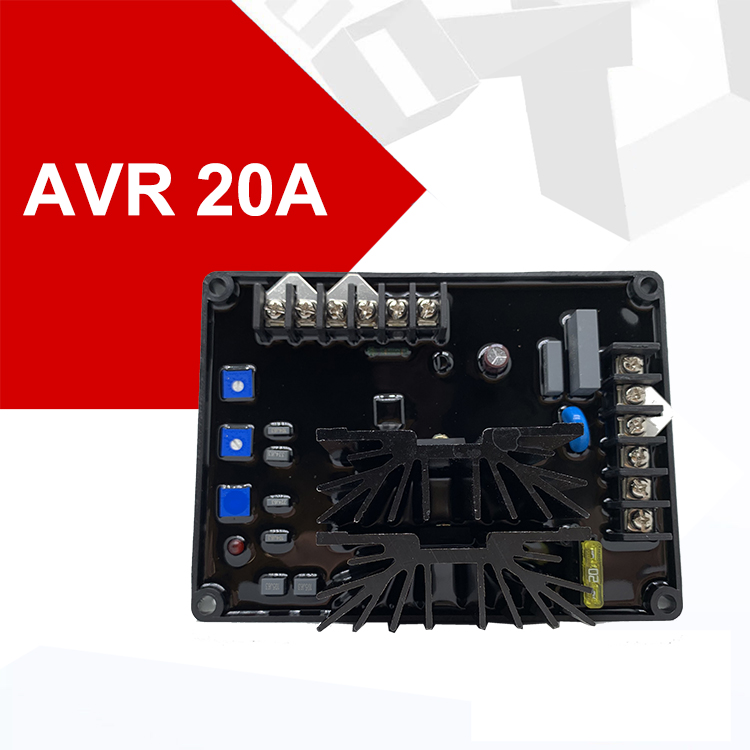

Good Quality Brushless Generator Avr 20kva Avr 220v Thee Phase Automatic Voltage Regulator AVR-20A Gavr 20a
Gavr 20a
minimum order
1 carton
Quantity
$16.00 - $25.00 / carton
Good Quality Brushless Generator Avr 20kva Avr 220v Thee Phase Automatic Voltage Regulator AVR-20A Gavr 20a
- Model Number:avr 20a
- Package Size:13.5*10*6CM
- Weight:0.35kg
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Color:black
- Quality:High Quanlity
Product Overview
Good quality Brushless Generator avr 20kva avr 220v thee phase automatic voltage regulator AVR-20A Gavr 20a
Generator Universal AVR GAVR 20A Automatic Voltage Regulator is a half-wave phase controlled thyristor type Automatic VoltageRegulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
FEATURES AT A GLANCE
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
PRODUCT SPECIFICATIONS
Power Input Voltage | 180~240VAC, 1phase 2wire | ||
Output Voltage | Max.90VDC-240VAC input | ||
Voltage Regulation | <±1% RMS with 4% engine governing | ||
Under Frequency Protection | 60Hz system presets knee point at 57Hz | ||
Factory Settings | 50Hz system presets knee point at 47Hz | ||
