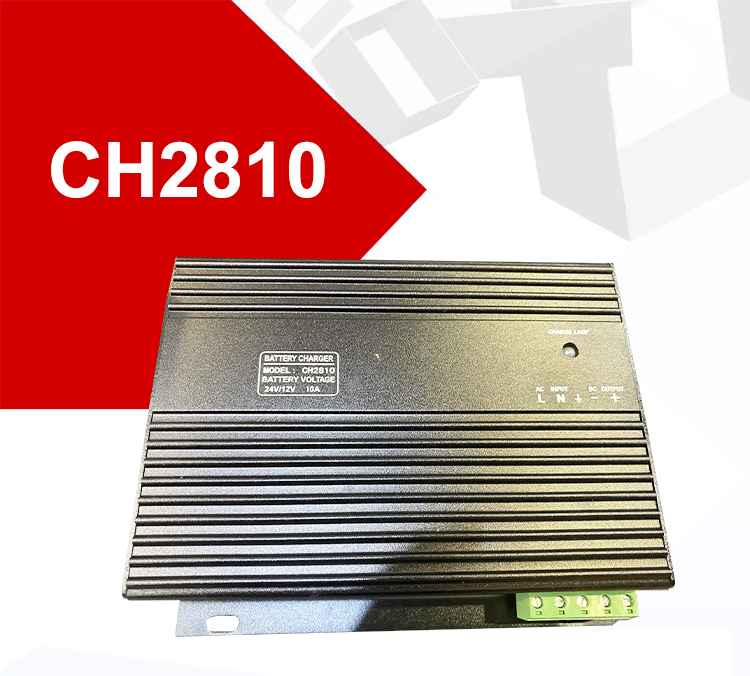

Generator Automatic Battery Charger 10A 12 Volt 12V/24V Battery Charger 24 Volt CH2810
CH2810
minimum order
1 carton
Quantity
$20.00 - $25.00 / carton
- Place of Origin:Fujian, China
- Brand Name:guangling
- Model Number:CH2810
- rated current:4a
- Product Name:Guangling
- Package Size:12*8.5*5.5cm
- Weight:0.35kgs
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Certification:CE,ISO
- Warranty:1Year
PRODUCT SPECIFICATIONS
Generator Automatic Battery Charger 10A 12 Volt 12V/24V Battery Charger 24 Volt CH2810
Input | AC 95~280V | AC Frequency | 50Hz/60Hz |
Output CHARGING | 4A-6A,(Error±2%) 12V | Output CHARGING | 2A-3A,(Error ±2%) |
Max. Power | 85W | Min. Voltage | 7.5V |
Insulation Resistance | Between input and output, input and shell both are: DC500V 1min RL>500MQ | Insulation Voltage | Between input and output, input and shell both are: AC 1600V 50Hz 1min Leakage current: IL3.5mA. |
Function:
1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
3. With short circuit and reverse connection protection;
3. With short circuit and reverse connection protection;
4. Charging voltage and current can be adjusted via potentiometer on the spot;
5. LED display: Power indication and charging indication;
6. Horizontal type for installation of BAV06A, easy to install;
7. Vertical type for installation of BAC06V, furthest decreased installation dimension.
5. LED display: Power indication and charging indication;
6. Horizontal type for installation of BAV06A, easy to install;
7. Vertical type for installation of BAC06V, furthest decreased installation dimension.
8. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
9.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
9.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
