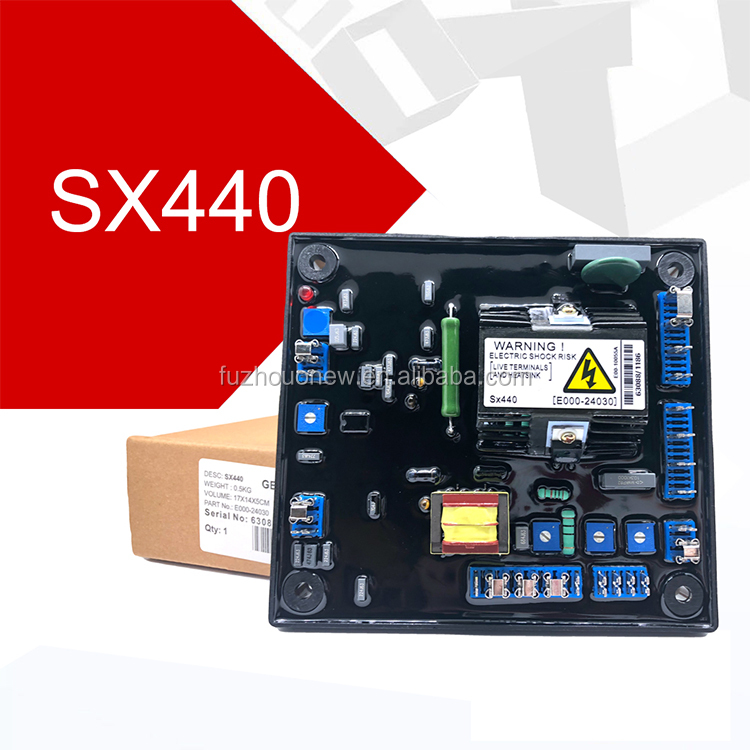

China Generator Universal AVR Sx440 Regulator Avr Circuit Diagram Sx440
sx440
minimum order
1 carton
Quantity
$13.00 - $100.00 / carton
China Generator Universal AVR Sx440 Regulator Avr Circuit Diagram Sx440
- Model Number:sx440r
- generator type:diesel generator, gasoline generator
- Product Name:avr
- package:carton packing
- MOQ:1
- AC Single/Three Phase:Can be supplied
- Alternator:Stamford / Leory Somer / China, etc
- Rated Voltage:110V / 240V, 220V / 380V, 230V / 400V, 240V / 415V
- Gross/Net Weight:0.35kg
- Keyword:china generat avr
- Warranty:1 Year

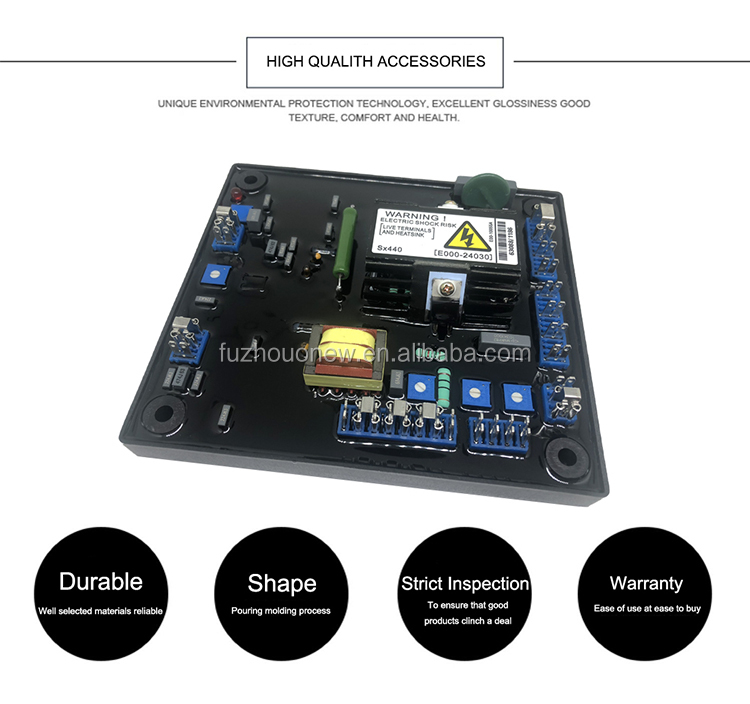

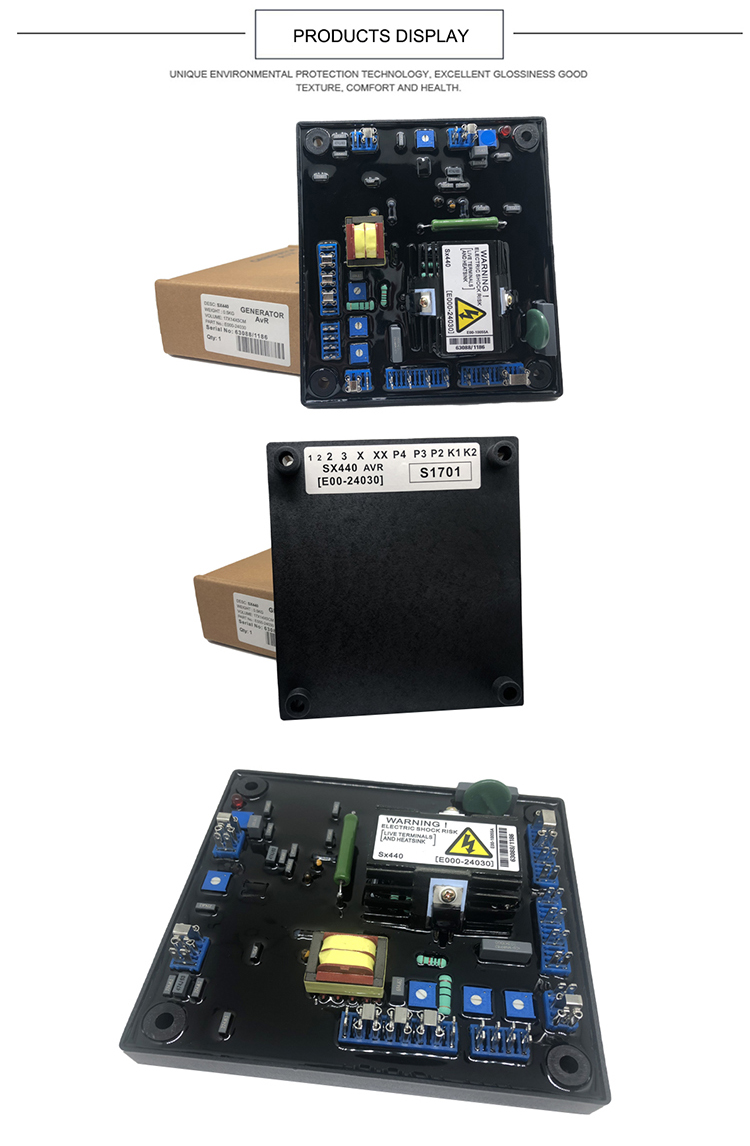

Generator Universal AVR sx440 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
If you have any questions please contact us we will be happy to serve for you.
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
PRODUCT SPECIFICATIONS
Stamford Newage brsuhless avr | sx440 |
Sensing Input | 190-264VAC, 1 phase 2 wire |
Frequency | 50-60Hz nominal |
Power Input (PMG) | 170-220VAC , 3 phase 3 wire |
Current | continuous 3A/phase |
Frequency | 100-200Hz nominal |
output Voltage | max 120VDC |
Current | continuous 2.7ADC , intermittent 6A for 10 secs |
Resistance | 15 Ω minimum |
Regulation | .+/-1% RMS with 4% engine governing |
Gnerator Power | 200-500kw |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
