Brushless Genset Parts AVR AS540 Automatic Voltage Regulator
AS540
minimum order
1 carton
Quantity
$71.00 - $85.00 / carton

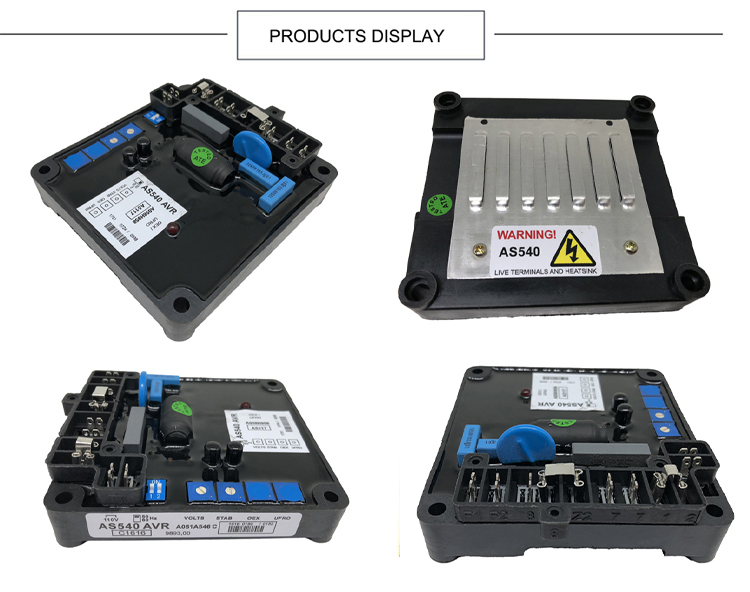

Brushless Genset Parts AVR AS540 Automatic Voltage Regulator
- Model Number:as540
- rated current:4A
- Type:AVR, Automatic Voltage Regulator AVR R250 for Diesel Generator
- generator type:diesel generator, gasoline generator
- Product Name:avr
- package:carton packing
- MOQ:1
- AC Single/Three Phase:Can be supplied
- Alternator:Stamford / Leory Somer / China, etc
- Rated Voltage:110V / 240V, 220V / 380V, 230V / 400V, 240V / 415V
- Gross/Net Weight:0.35kg
- keywords:as540
- Quality Class:High Quatity
Product Description

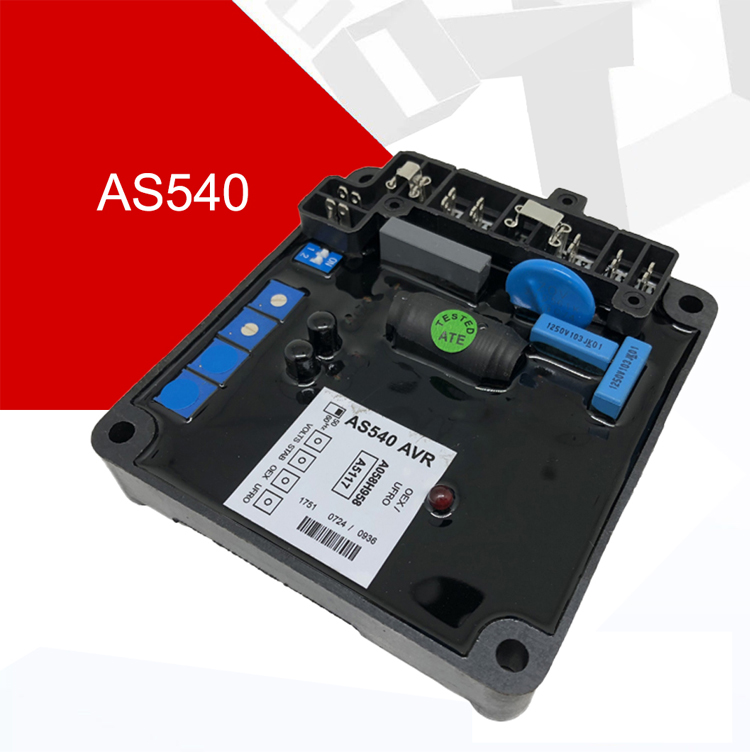

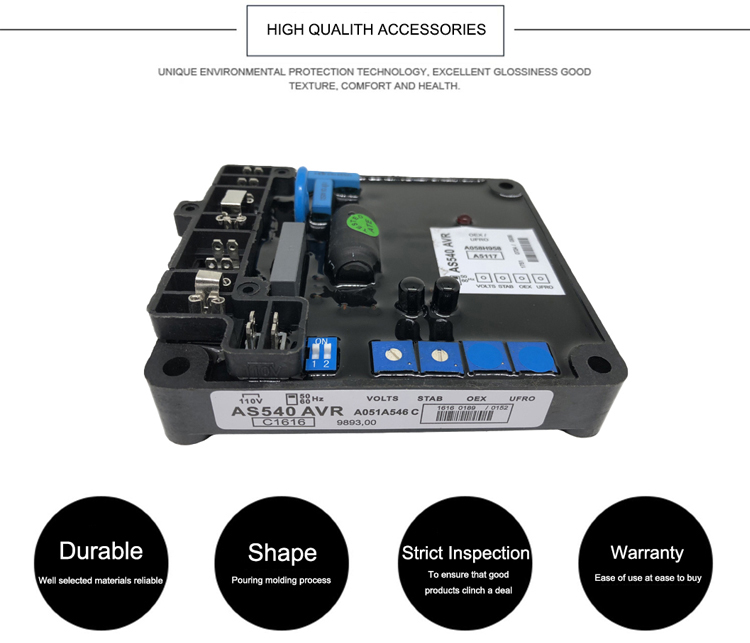

Generator Universal AVR AS540 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
Product Parameter
sensing voltage | jumper selectable 120(95-132)VAC,240(190-264)VAC, single phase 2wire |
Sensing Input Voltage | 220/400VAC, 1 phase 2wire |
Frenquency | 50-60Hz nominal |
Voltage Input | Max 90VDC at 207VAC input |
Resistance | 15Ω minimum |
Regulation | <± 1% RMS with 4% engine governing |
Voltage Build-up | residual voltage at avr terminal >5VAC |
External Voltage Ajustment | :+/-7% with 1k ohm 1 watt trimmer |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
