Automatic Voltage Regulator R150 12.5 Kva 12 Kva 11 Kv 12v 10kva diesel Generator Avr Unit
R150
minimum order
1 carton
Quantity
$37.00 - $40.00 / carton
Automatic Voltage Regulator R150 12.5 Kva 12 Kva 11 Kv 12v 10kva diesel Generator Avr Unit
- Model Number:R150
- rated current:80A
- Type:Auto Start
- Material:Steel
- generator type:diesel generator
- Product Name:Guangling
- Single Package Size:170*150*50MM
- Weight:0.55kg
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:105 VDC at 240 VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Appearance:neutral
FEATURES AT A GLANCE

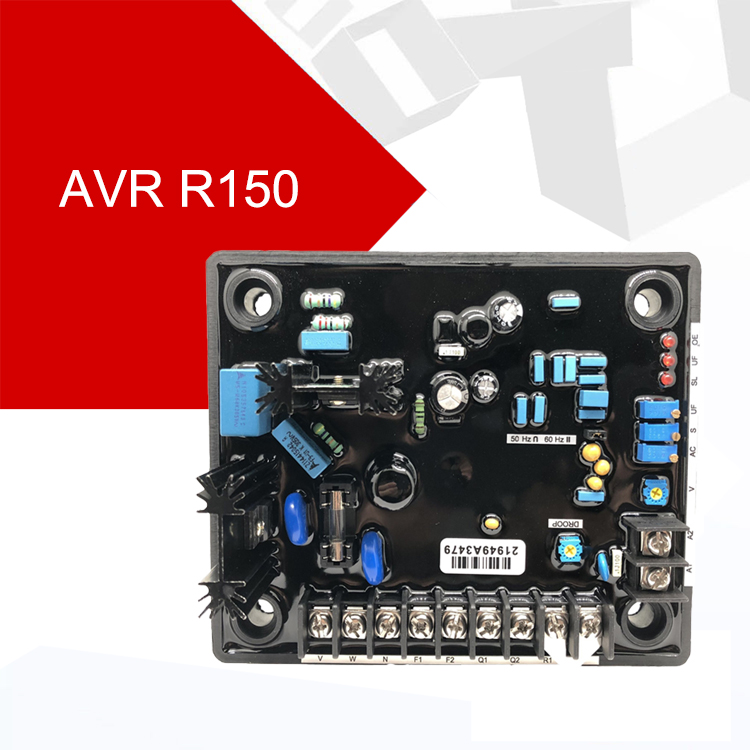

The R150 automatic voltage regulator (AVR) is a compact, high-performance encapsulated unit. It incorporates the latest technology and efficient components to achieve a high degree of miniaturisation when applied to a 3-phase and 1-phase AC brushless generator, within its input and output limits.The unit offers excellent reliability.
PRODUCT SPECIFICATIONS
Product Name | Generator AVR R150 | |||
Sensing/Power input | Voltage | 190 to 264 Vac,1 phase 2 wire jumper selectable | ||
Frequency | 50/60 Hz jumper selectable | |||
Output | Voltage | 105 VDC at 240 VAC input | ||
current | Continuous 4A,Intermittent 6A for 10 seconds | |||
Voltage setting | min ± 10% of rated voltage. | |||
