Automatic Voltage Regulator GAVR-12A Universal 3 Phase Avr 75kva 7 Wire 380v diesel Generator Avr
GAVR-12A
minimum order
1 carton
Quantity
$8.00 - $10.00 / carton
Automatic Voltage Regulator GAVR-12A Universal 3 Phase Avr 75kva 7 Wire 380v diesel Generator Avr
- Model Number:GAVR-12A
- Package Size:13.5*10*6CM
- Weight:0.35kgs
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Appearance:neutral
- Warranty:1 Year, 1 year

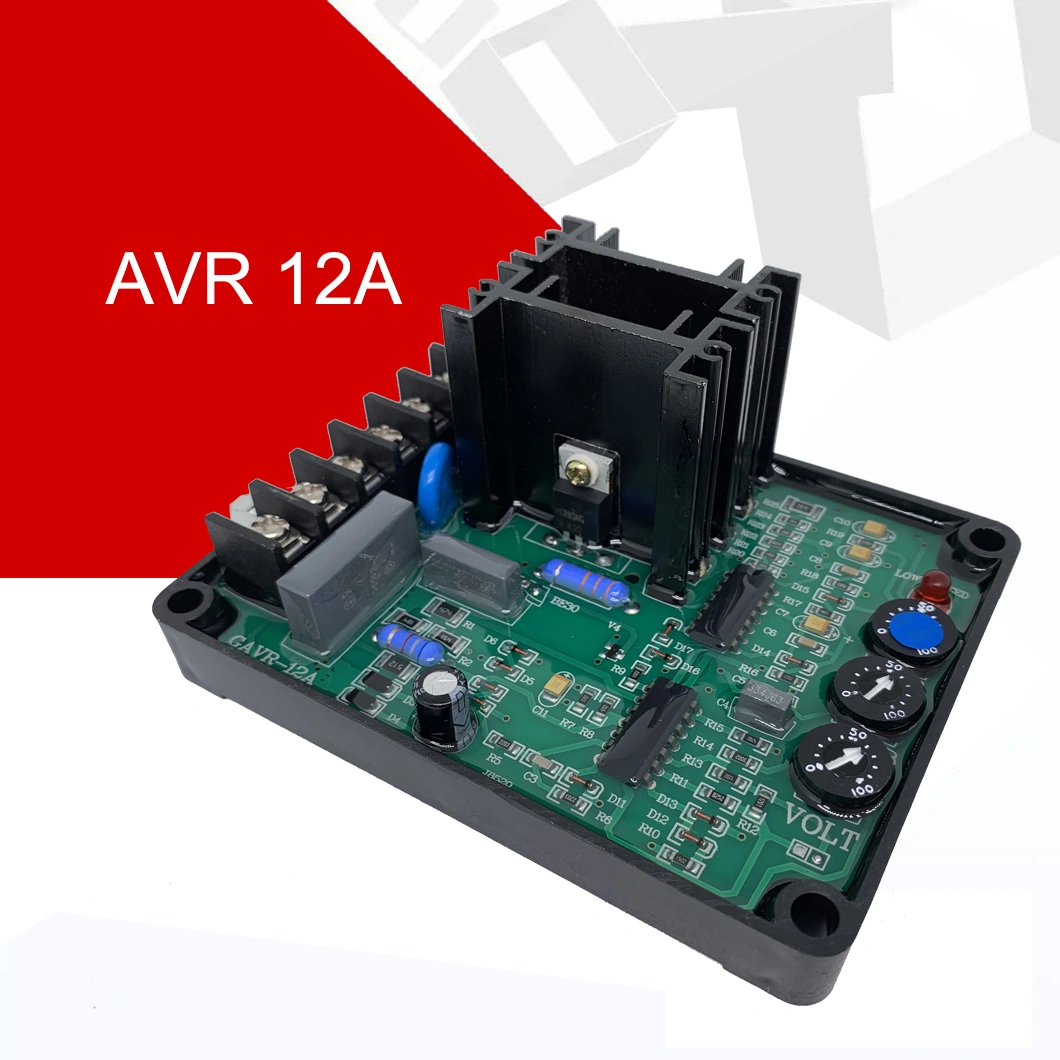

GAVR-12A Generator Automatic Voltage Regulator AVR is Universal 12 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
FEATURES AT A GLANCE
<1% Regulation
110/220/400 VAC Programmable Input
Rugges Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Supression
Built-in Hugh Capacity 12 Amp Fuse
110/220/400 VAC Programmable Input
Rugges Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Supression
Built-in Hugh Capacity 12 Amp Fuse
PRODUCT SPECIFICATIONS
Power Input Voltage | 180~240VAC, 1phase 2wire | ||
Output Voltage | Max.90VDC-240VAC input | ||
Voltage Regulation | <±1% RMS with 4% engine governing | ||
Under Frequency Protection | 60Hz system presets knee point at 57Hz | ||
Factory Settings | 50Hz system presets knee point at 47Hz | ||
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
