Generator 25KVA AVR Marelli AVR M16FA655A Automatic Voltage Regulator M31fa600A M40fa610A M40fa640A for Alternator
M40fa610A
minimum order
1 carton
Quantity
$17.00 - $20.00 / carton
Generator 25KVA AVR Marelli AVR M16FA655A Automatic Voltage Regulator M31fa600A M40fa610A M40fa640A for Alternator
- Model Number:M40fa610A
- rated current:4A
- Package Size:12*8.5*5.5cm
- Weight:0.35kgs
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- KEYWORDS:M40fa610A
- MOQ:1 Piece
- Warranty:1Year
PRODUCT SPECIFICATIONS
China High Quality Automatic Voltage Regulator M40fa610A Stabilizer AVR for Generator

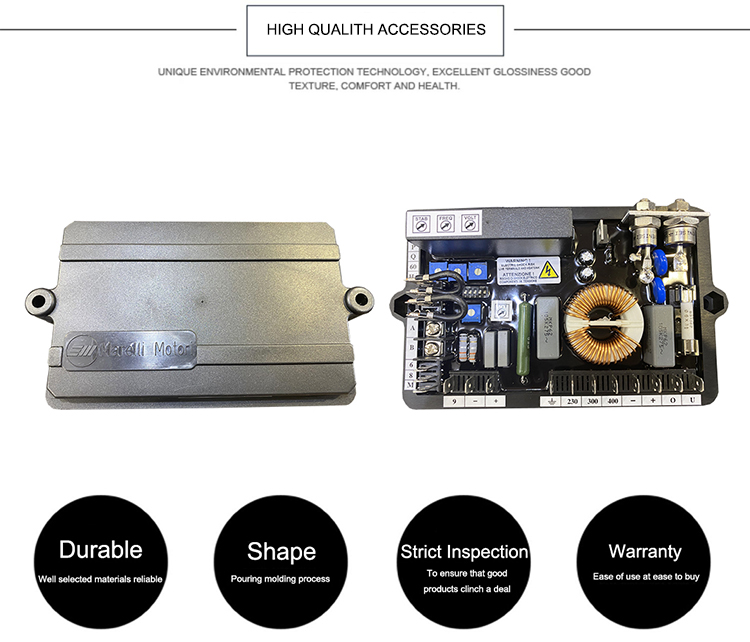

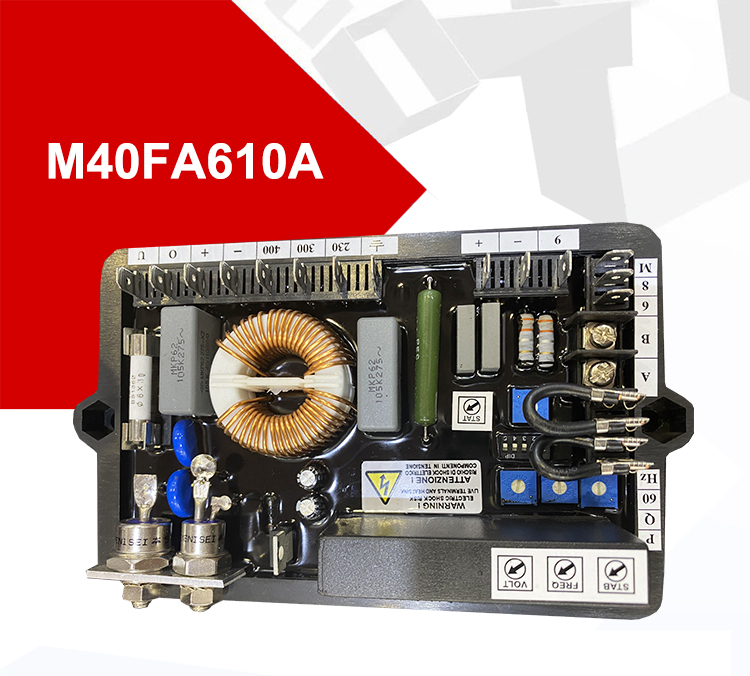

1.TheAVRM40fa610A is an analogic Automatic Voltage Regulator with transistor.2.The voltage sensing is done with three 24VA single phase transformers.
3.TheAVRM40fa610A module is designed to be installed vertically next to the voltage regulator
High voltage input (400V): 340V±5%~480V±5%
Middle voltage input (230V): 200V±5%~240V±5%
Low voltage input (110V): 90V ±5%~140V±5%
Description | Generator parts AVR |
Place of origin | FRANCE |
Voltage sensing | the voltage sensing is done three 2VA single phase transformers |
Input Voltage | |
High voltage tap (400V) | 340V ±5% to 480V ±5% |
Medium Voltage tap (230V) | 200V ±5% to 240V ±5% |
Low voltage tap (110V) | 90V ±5% to 140V ±5% |
Voltage Droop | |
Current sensing | C.T. for // operation |
Location | standard line 1(U), option line 2(V) |
Current | |
MAX. continous current | 1.3A |
Norminal current | 1A |
MAX. current for 10s | 10A |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
