Cheap Price High Quality Automatic Voltage Regulator Generator Avr Gavr 8a Avr-gavr-8a Price List
avr 8a
minimum order
1 carton
Quantity
$5.00 - $20.00 / carton
- Place of Origin:Fujian, China
- Brand Name:no brand
- Model Number:avr 8a
- rated current:8a
- Product Name:avr
- Certificate:CE/ISO9001
- package:carton packing
- MOQ:1
- AC Single/Three Phase:Can be supplied
- Alternator:Stamford / Leory Somer / China, etc
- Type:Automatic Voltage Regulator AVR R250 for Diesel Generator
- Rated Voltage:110V / 240V, 220V / 380V, 230V / 400V, 240V / 415V
- Gross/Net Weight:0.35kg
- keywords:avr 8a
- Warranty:None
Product Description
Cheap price High Quality automatic voltage regulator avr 8a for generator

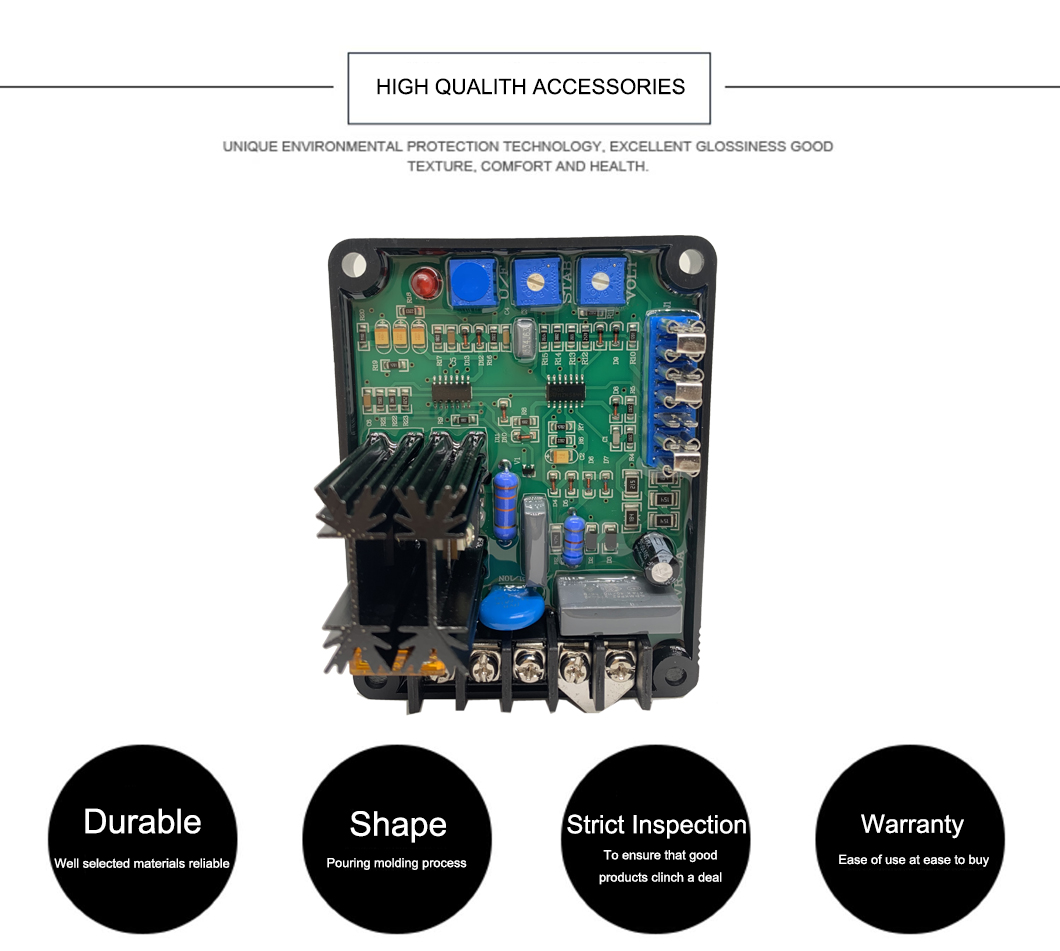

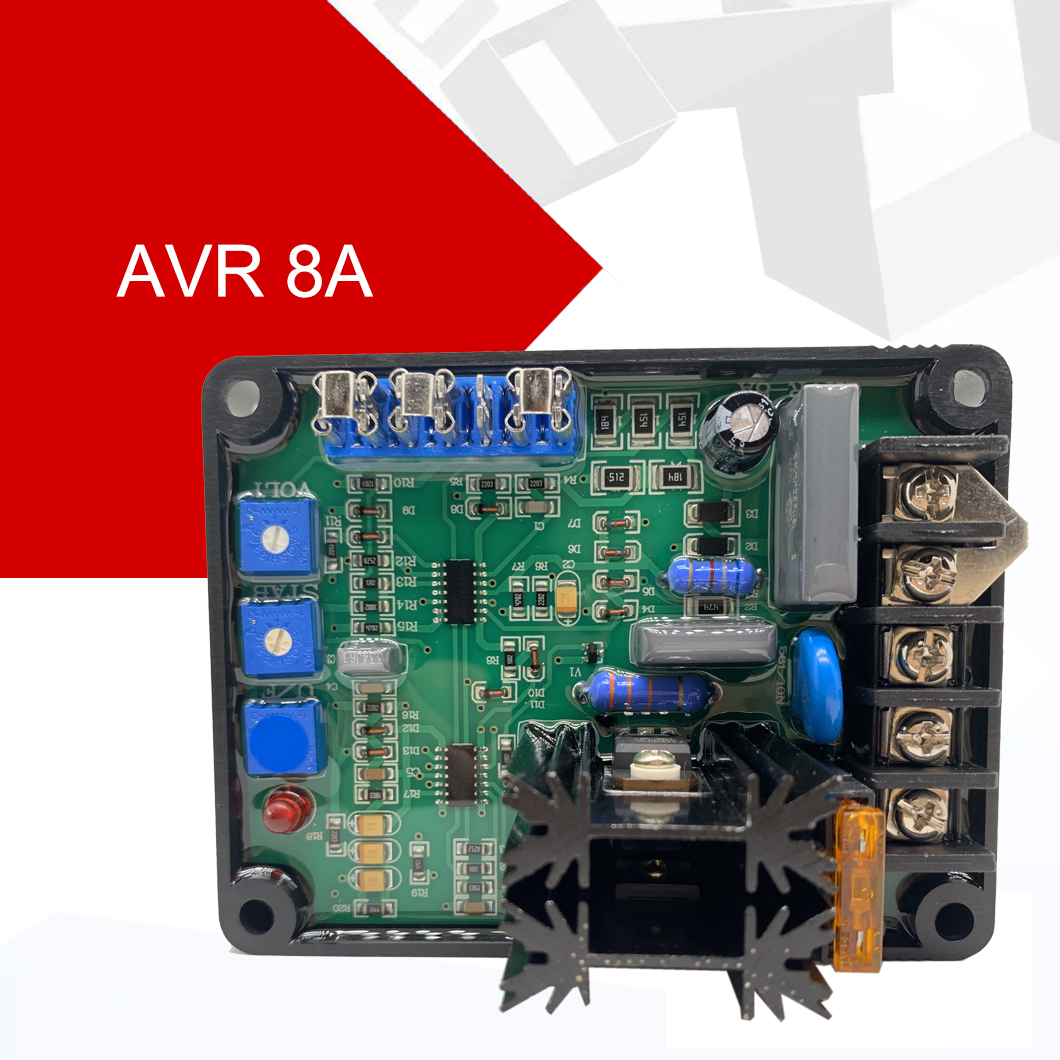

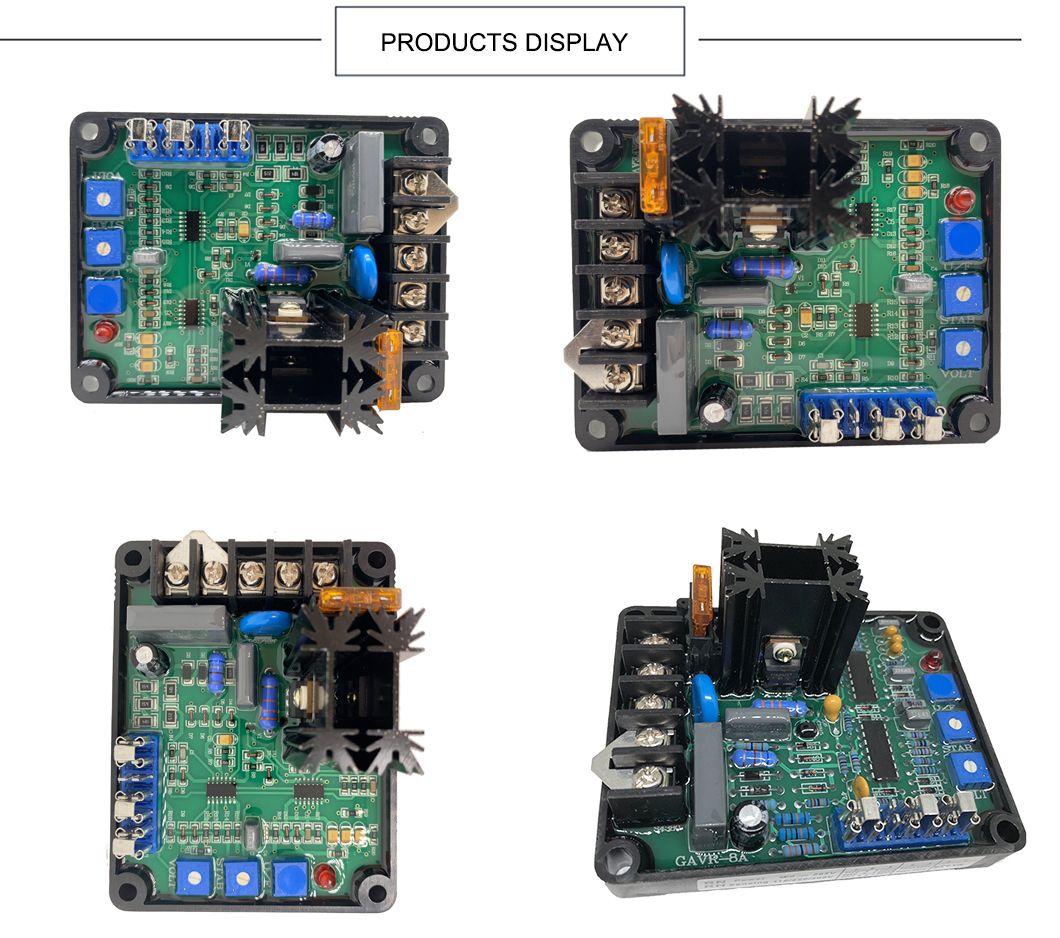

Generator Universal AVR 8A For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Generator Universal AVR 8A For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
If you have any questions please contact us we will be happy to serve for you.
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
1.Generator parts
2.Brushless type
3.High quality,professional service.
4.ISO9001
Product Parameter
Specification Parameter for AVR 8A | ||
Input | ||
Voltage Jumper selectable | 95-132V ac or 190-264V ac | |
Frequency | 50~60Hz nominal Phase 1 | |
Output | ||
Voltage | Max 90V DC at 207V AC input | |
Current continuous | 4 A DC | |
Intermittent | 6 A for 10 secs | |
Resistance | 15 ohms minimum | |
Regulation | +/- 1.0%(with 4% engine governing) | |
Environment | ||
Vibration | 20-100 Hz 50mm/sec 100Hz-2kHz 3.3g | |
Operating Temperature | -40°C to + 70°C | |
Storage Temperature | -55°C + 80°C | |
Relative Humidity | 0-70°C 95%(Non condensing) | |
sensing voltage | jumper selectable 120(95-132)VAC,240(190-264)VAC, single phase 2wire | |
Sensing Input Voltage | 220/400VAC, 1 phase 2wire | |
Voltage Build-up | residual voltage at avr terminal >5VAC | |
External Voltage Ajustment | :+/-7% with 1k ohm 1 watt trimmer | |
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
