Avr Generator Circuit Diagram AS440 Alternator Voltage Regulator Avr Stamford As440 Price
AS440
minimum order
1 carton
Quantity
$13.00 - $19.00 / carton
- Place of Origin:Fujian, China
- Brand Name:guangling
- Model Number:AS440
- Product Name:Guangling
- Package Size:15.5*10.5*5.5CM
- Weight:0.35kg
- Application Range:brushless generator set
- Output Voltage:90V DC Maximum
- Input Voltage:Max.90VDC-240VAC input
- Regulation:±1%
- Output Current:4A
- Input Frequency:50/60Hz
- Appearance:neutral
Video Description
Product Overview

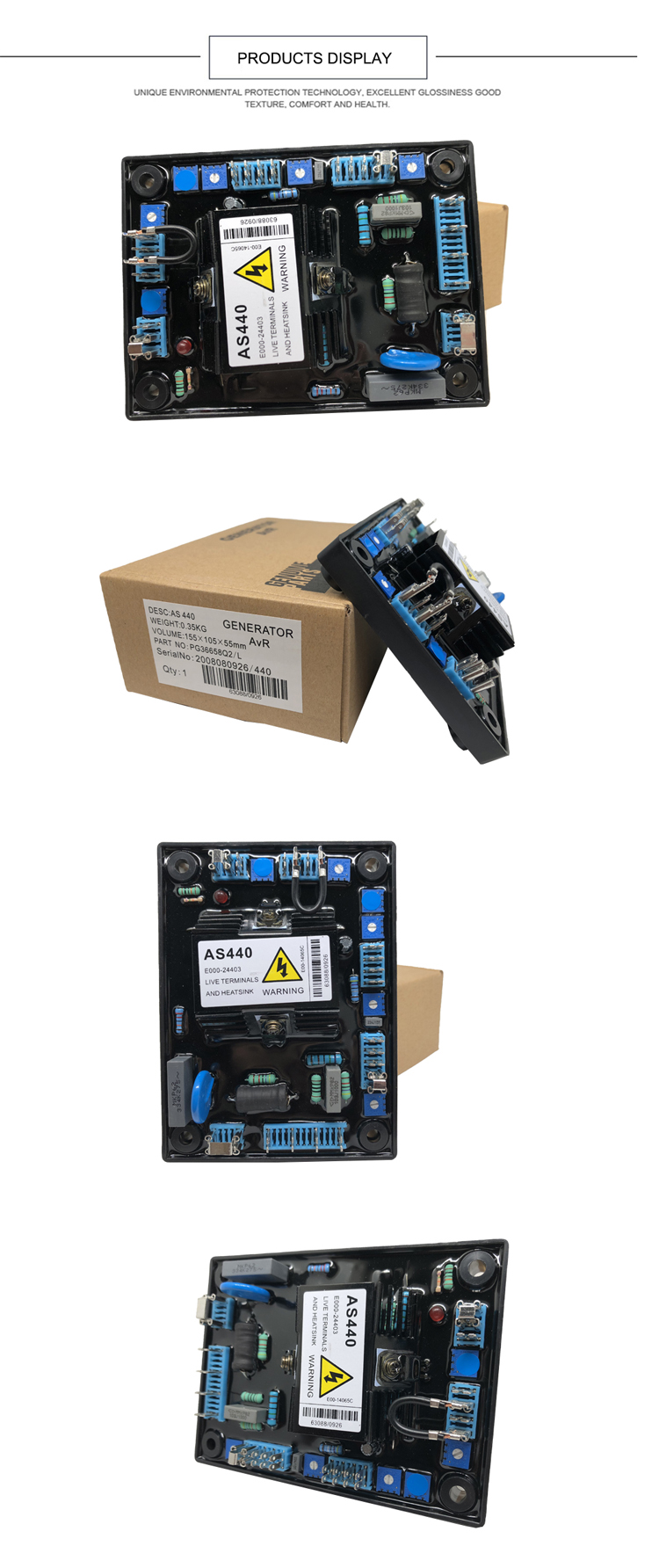

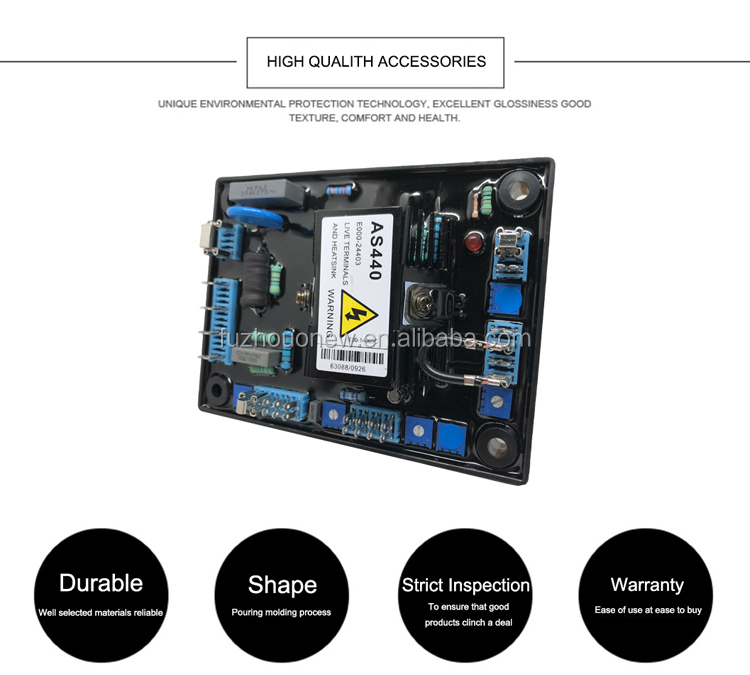

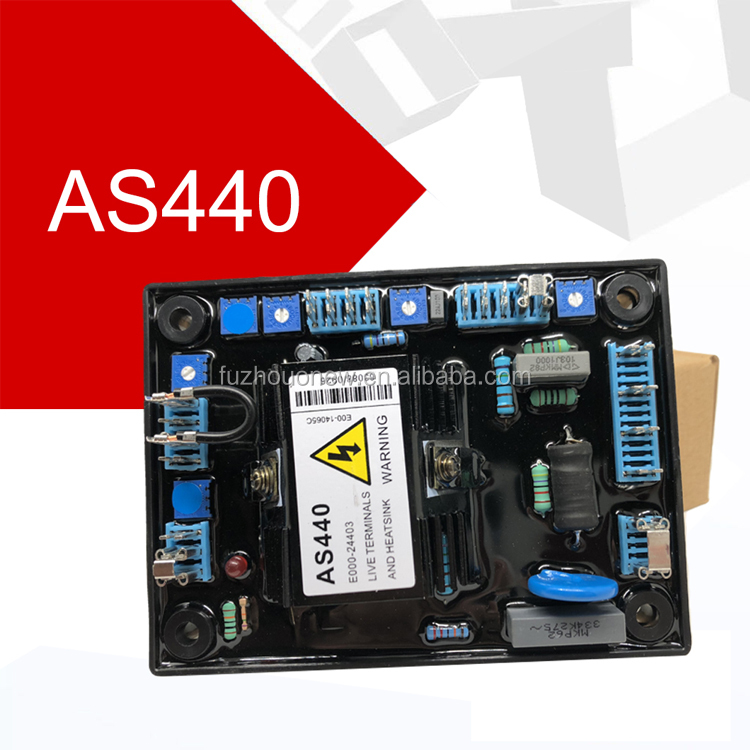

avr Generator Circuit Diagram AS440 Alternator Voltage Regulator
Generator Universal AVR SX460 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
FEATURES AT A GLANCE
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the
AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output
voltage with load regulations of +/- 1.5%.
AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output
voltage with load regulations of +/- 1.5%.
PRODUCT SPECIFICATIONS
Sensing Input Voltage | 220/400VAC, 1 phase 2wire | ||
Voltage Input | Max 90VDC at 207VAC input | ||
Voltage Regulation | <±1% RMS with 4% engine governing | ||
Voltage Build-up | residual voltage at avr terminal >5VAC | ||
Frenquency | 50-60Hz nominal | ||
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
